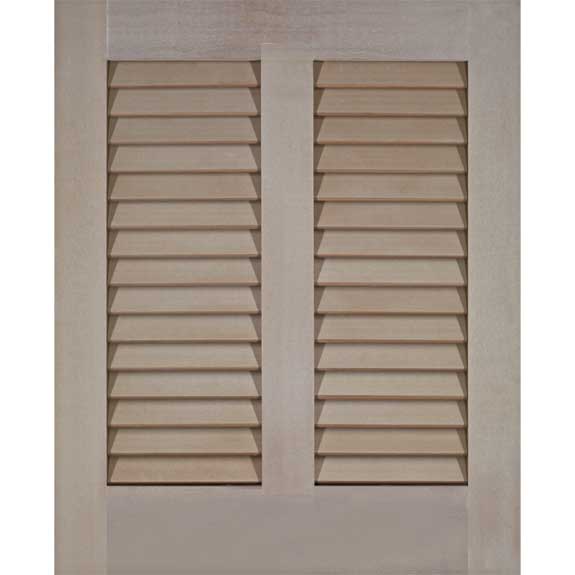

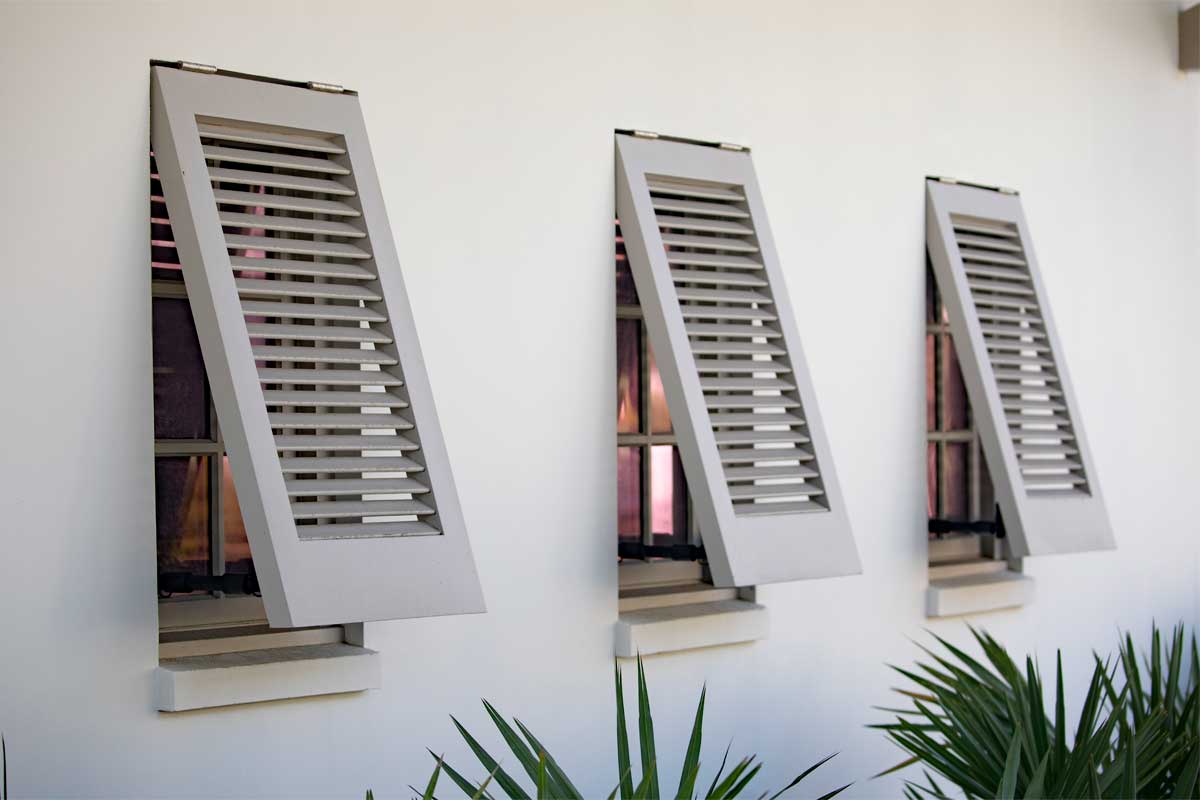

Exterior PVC Bahama Shutters

Straight Top Shutters

Straight top shutters are manufactured with a square horizontal top.

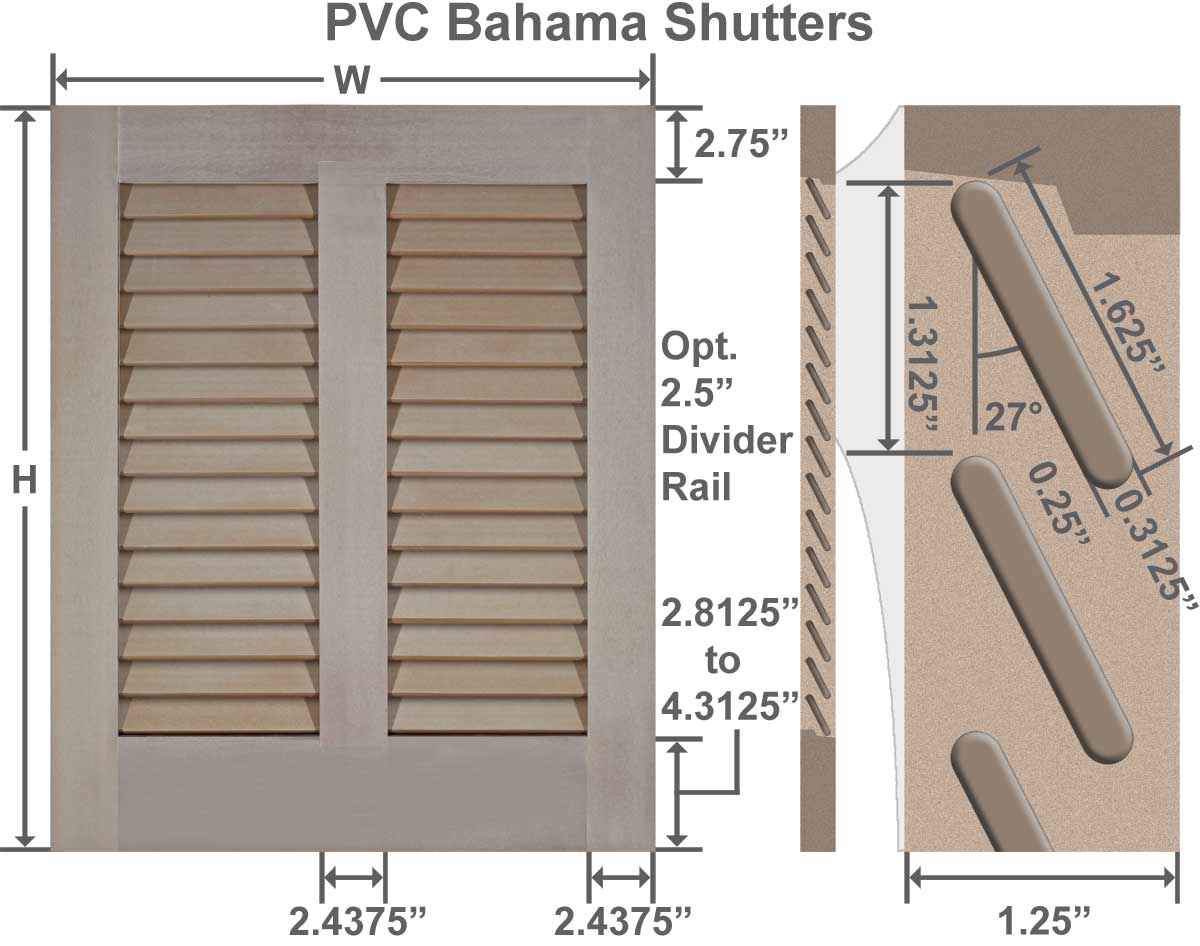

Rail sizes are displayed in the “Dimensions” area on the main order page.
Arch Top Shutters

Arch top shutters are made with a curved top.

The specified shutter height is the dimension of the long vertical edge of the shutter.

The required springline is the measurement from the top of the shutter down to the start of the arch.

More about arch top shutters

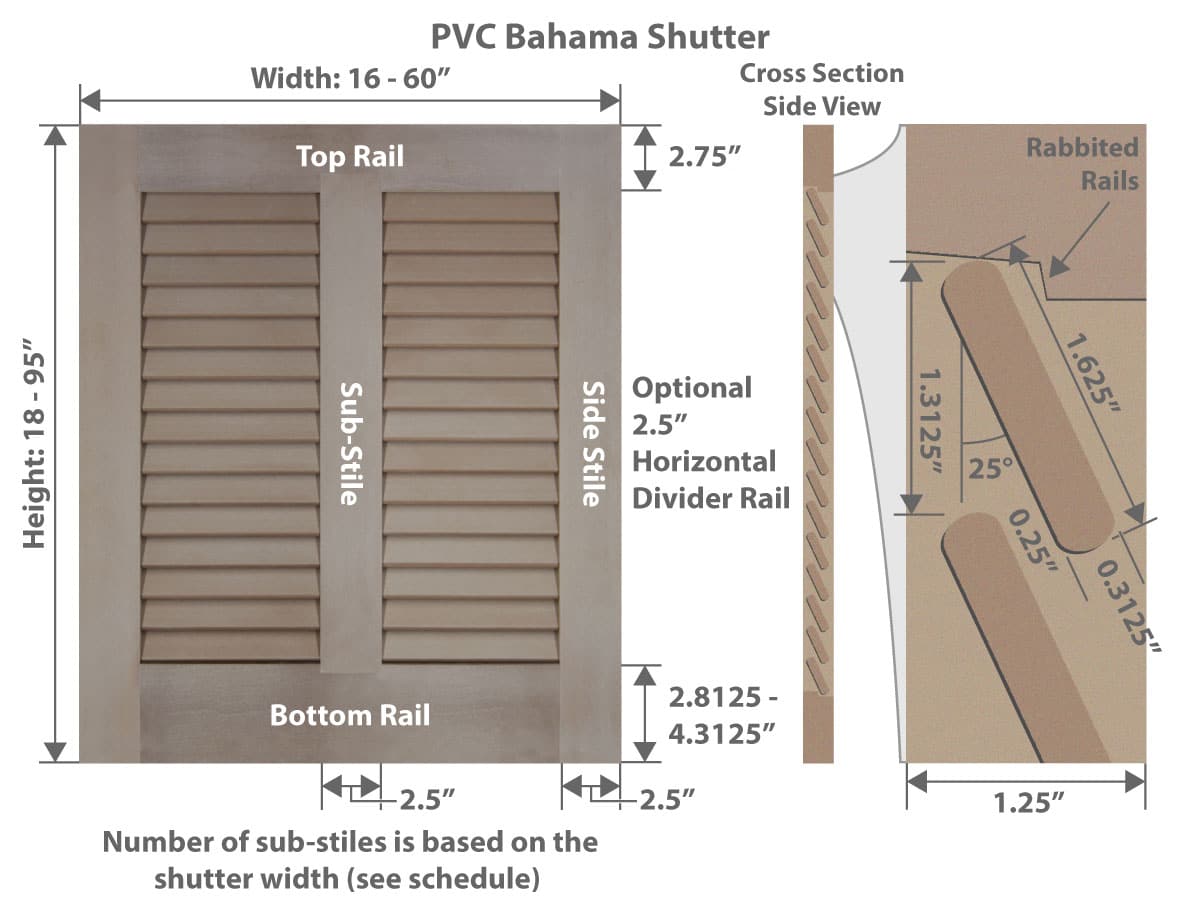

A divider rail is a horizontal bar (much like the top rail) that creates louver areas above and below the division. The divider rail height is 2 ½” on front and back and rabbeted to reduce gap between rail and louvers.

No Divider Rail
- Configuration allowable when the shutter is shorter than 90″
- The “No” divider rail button becomes unavailable on the order page when height is greater than or equal to 90″
One Divider Rail
- Measure from the bottom of the shutter to the desired center of the divider rail*
- Optional when the shutter is shorter than 90″
- Required if height is greater than or equal to 90″
- Divider rail size is displayed under “Specifications” on the main order page
* The actual location of the divider rail may be slightly higher or lower than requested. The number of louvers will dictate the final placement.
Two Divider Rails
- Measure from the bottom of the shutter to the desired center of the first divider rail*
- Then, measure from the bottom of the shutter to the desired center of the second divider rail*
- Divider rail size is displayed under “Specifications” on the main order page
* The actual location of the divider rails may be slightly higher or lower than requested. The number of louvers will dictate the final placement.

A divider rail is a horizontal bar (much like the top rail) that creates louver areas above and below the division. The divider rail height is 3″ for 1.75″ 1.5″ louvers.

No Divider Rail
- Configuration allowable when the shutter is shorter than 90″
- The “No” divider rail button becomes unavailable on the order page when height is greater than or equal to 90″
One Divider Rail
- Measure from the bottom of the shutter to the desired center of the divider rail*
- Optional when the shutter is shorter than 90″
- Required if height is greater than or equal to 90″
- Divider rail size is displayed under “Specifications” on the main order page
* The actual location of the divider rail may be slightly higher or lower than requested. The number of louvers will dictate the final placement.
Two Divider Rails
- Measure from the bottom of the shutter to the desired center of the first divider rail*
- Then, measure from the bottom of the shutter to the desired center of the second divider rail*
- Divider rail size is displayed under “Specifications” on the main order page
* The actual location of the divider rails may be slightly higher or lower than requested. The number of louvers will dictate the final placement.

A divider rail is a horizontal bar (much like the top rail) that creates louver areas above and below the division. The divider rail height is 3.5″ for 1.75″ louvers and 3″ for 1.5″ louvers.

No Divider Rail
- Configuration allowable when the shutter is shorter than 90″
- The “No” divider rail button becomes unavailable on the order page when height is greater than or equal to 90″
One Divider Rail
- Measure from the bottom of the shutter to the desired center of the divider rail*
- Optional when the shutter is shorter than 90″
- Required if height is greater than or equal to 90″
- Divider rail size is displayed under “Specifications” on the main order page
* The actual location of the divider rail may be slightly higher or lower than requested. The number of louvers will dictate the final placement.
Two Divider Rails
- Measure from the bottom of the shutter to the desired center of the first divider rail*
- Then, measure from the bottom of the shutter to the desired center of the second divider rail*
- Divider rail size is displayed under “Specifications” on the main order page
* The actual location of the divider rails may be slightly higher or lower than requested. The number of louvers will dictate the final placement.

Measure PVC Shutters

PVC exterior shutters install to the side of the window using one of two methods.

Stationary shutters permanently attach to the side of the window in a fixed location with the included polycarbonate mounting brackets.

Functional shutters mount with operable exterior hardware to pivot from a position flanking the window to cover the window opening.

How the window is measured depends on which of these two options is selected.

How to Measure PVC Shutters

Measure Wood Shutters

Wood exterior shutters install to the side of the window using one of two methods.

Stationary shutters permanently attach to the side of the window in a fixed location.

Functional shutters mount with operable exterior hardware to pivot from a position flanking the window to cover the window opening.

How the window is measured depends on which of these two options is selected.

Full Measuring Guidelines

1.75" Louvers (Standard)
- 1.75″ wide
- 0.25″ thick
- Length 4.25″ less than shutter width
- Spaced on 1.75″ centers
- 0.1875″ between louvers
- Fixed 17° angle – do not rotate
- Number of louvers determined by shutter height
  Return to order page to calculate in “Specifications” section
1.5" Louvers
- 1.5″ wide
- 0.25″ thick
- Length 4.25″ less than shutter width
- Spaced on 1.5″ centers
- 0.1875″ between louvers
- Fixed 17° angle – do not rotate
- Number of louvers determined by shutter height
  Return to order page to calculate in “Specifications” section
- Adds $25 per shutter

ShutterLand’s manufacturing process has been streamlined to keep costs and manufacturing time at a minimum. Therefore, we do not deviate from these two louver sizes.

Faux Tilt Bar

A tilt bar is a narrow vertical wood rod that interconnects a group of horizontal louvers. A tilt bar used in conjunction with movable louvers unifies the slats and allows them to rotate at one time. Louvers on ShutterLand premium wood louvers are fixed in position and do not rotate. A faux tilt bar can be attached to replicate the appearance of movable louvers, usually for historical purposes. Selection of a tilt bar adds $40 to the price of each shutter.

Most exterior shutter applications do not require a tilt bar.
Faux Tilt Bar - Shutter With a Divider Rail

If a divider rail is employed, the tilt bar can be added to all louver sections or only added to one section.

After incorporating a tilt bar, it is necessary to establish if the tilt bar will be applied to all louvers and if the louvers will be in an up or down position.
Faux Tilt Bar - Louvers Down

The tilt bar can be attached on the side of the shutter with the louvers in a down position.
Faux Tilt Bar - Louvers Up

The tilt bar can be attached on the side of the shutter with the louvers in an up position.

Red Grandis

Red Grandis is a nearly perfect high quality hardwood to manufacture exceptional exterior shutters. It has straight tight grain and minimal knotting, resulting in a consistently smooth texture. The fibers are relatively uniform in color with variations from light pink to dark red, and accept paint or stain well. Red Grandis is dimensionally stable and extremely strong.
Cedar

Cedar is the most common and recognizable tree species for the construction of outdoor shutters. This aromatic timber is resistant to both insects and decay. Cedar has condensed grain with few knots, resulting in straight handsome shutters with tones of red, brown, and tan. Cedar paints and stain well.
Mahogany

Mahogany has a compact grain with a rich, warm, reddish-brown hue. Mahogany shutters are strong, sturdy, and moisture resistant. Mahogany is relatively easy to finish and is heavier than other woods offered.

Tilt Bar

A tilt bar is a narrow vertical wood rod that interconnects a group of horizontal louvers. A tilt bar used in conjunction with movable louvers unifies the slats and allows them to rotate at one time. Louvers on ShutterLand wood louvers are fixed in position and do not rotate. A faux tilt bar can be attached to replicate the appearance of movable louvers, usually for historical purposes. Selection of a tilt bar adds $40 to the price of each shutter.

Most exterior shutter applications do not require a tilt bar.

If a divider rail is employed, the tilt bar can be added to all louver sections or only added to one section.

After incorporating a tilt bar, it is necessary to establish if the tilt bar will be applied to all louvers and if the louvers will be in an up or down position.
Faux Tilt Bar - Louvers Down

The tilt bar can be attached on the side of the shutter with the louvers in a down position.
Faux Tilt Bar - Louvers Up

The tilt bar can be attached on the side of the shutter with the louvers in an up position.

Pine Wood Louvers
- 1.75″ wide
- 0.25″ thick
- Length 4.25″ less than shutter width
- Spaced on 1.75″ centers
- 0.1875″ between louvers
- Fixed 17° angle – do not rotate
- Number of louvers determined by shutter height
  Return to order page to calculate in “Specifications” section
ShutterLand’s manufacturing process has been streamlined to keep costs and manufacturing time at a minimum. Therefore, we do not deviate from this louver size.

Southern Yellow Pine

Southern Yellow Pine is the most affordable solid wood option. This wood has a beautiful golden color with a distinct wood grain pattern that is 99.9% knot free. It is kiln-dried to minimum moisture content and cut to 1″ thick shutters. The joints between stiles and rails are glued, doweled, and screwed for ultimate strength.

Southern Yellow Pine shutters are considered entry-level, or builder grade, with lower performance standards compared to 1.5″ thick premium wood shutters.

Read more

Measure Composite Shutters

Composite exterior shutters install in a stationary position to the side of the window with the included Lexan polycarbonate fixed mounting brackets.

The v-shaped 1-1/8″ x 1-1/8″ brackets are specifically suited for use with outdoor composite shutters. The vertical side of the bracket attaches to the building and the horizontal side to the top or bottom of the shutter. The brackets extend the full width of the shutter and are not easily visible after installation.

Full Measuring Instructions

1.75" Composite Louvers (Standard)
- 1.75″ visible surface area (see illustration)
- Length 5″ less than shutter width
- Louver sections made in one piece (not separate, individual louvers)
- No space between louvers
- Fixed down at 10° angle
- Number of louvers determined by shutter height
  Return to order page to calculate in “Specifications” section
1" Composite Louvers
- 1″ visible surface area (see illustration)
- Length 5″ less than shutter width
- Louver sections made in one piece (not separate, individual louvers)
- No space between louvers
- Fixed down at 20° angle
- Number of louvers determined by shutter height
  Return to order page to calculate in “Specifications” section
- Adds $15 per shutter

ShutterLand’s manufacturing process has been streamlined to keep costs and manufacturing time at a minimum. Therefore, we do not deviate from these two louver sizes.

Faux Tilt Bar

A tilt bar is a narrow vertical wood rod that interconnects a group of horizontal louvers. Historically, a tilt bar unifies a group of movable louvers to allow them to rotate at one time. ShutterLand composite louvers are fixed in a downward-pointing position and do NOT rotate. A faux tilt bar can be attached to replicate the appearance of movable louvers, usually for historical purposes. Selection of a tilt bar adds $40 to the price of each shutter.

Most exterior shutter applications do not require a tilt bar.

Composite Shutters

ShutterLand composite shutters are constructed from Extira. The material is manufactured from sustainable wood fibers and marine-grade resins to form large 1.25″ thick solid straight sheets. Individual components are then milled and fabricated into custom shutters. Extira is designed for outdoor applications where humidity and moisture varies. It is strong and resilient with a long projected life.

Read more

Standard Paint Colors

Select from 9 standard paint colors plus an unlimited selection of custom colors.

White
Charcoal Slate
Black
Black Forest Green
Chrome Green
Hamilton Blue
Country Redwood
Cottage Red
Tudor Brown

Unfinished - Paint Grade

Unfinished shutters are raw with no finish applied. All surfaces are thoroughly sanded. Small blemishes are repaired with wood filler, which will arrive sanded smooth and ready to finish. Filled areas will not diminish the integrity of the shutter or show through the paint. Priming is recommended to seal the grain and support paint adhesion.
Unfinished - Stain Grade

Unfinished shutters are raw with no finish applied. All surfaces are thoroughly sanded. Wood is selected for a relatively uniform grain. Minor blemishes (if any) are repaired with stainable wood filler, which will arrive sanded smooth and ready to finish. Filled areas will not diminish the integrity or appearance of the shutter.
Primed

Primed shutters are sprayed with Benjamin Moore Aqua Lock Plus acrylic water-based universal primer / sealer. This primer provides complete coverage to seal the porous raw surface, block stains and prevent bleed-through. The medium gray primed surface will need to be sanded with 220 grit sandpaper and wiped clear of dust before painting.
Standard Paint Colors

Select from 9 standard paint colors. Painted exterior shutters are sanded, primed, sanded, and sprayed with two ultra-durable, water-borne commercial-grade Benjamin Moore Corotech COMMAND acrylic top coats. The factory applied paint covers all surfaces in a smooth satin sheen finish.
Custom Paint Colors

Choose a custom paint color for a one-time amount of $200 to match the color (NOT per shutter). Provide the paint manufacturer, color name, and color code to match. Or a color chip or physical sample may be mailed to match.

Painted exterior shutters are sanded, primed, sanded, and sprayed with two ultra-durable, water-borne commercial-grade Benjamin Moore Corotech COMMAND acrylic top coats. The factory applied paint covers all surfaces in a smooth satin sheen finish.

Read more

Straight Top

Straight top shutters have a standard horizontal top rail.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
Cathedral Top

A cathedral top is made with a small arc at the bottom of the top rail.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
Arch Top 1:1 Drop

The arch of a 1:1 drop is equal to the width. So the measurement from the top of the shutter down to the start of the arch is the same as the shutter width.

A pair of arch top shutters includes one shutter with the arch on the left side and one with the arch on the right.

*Double wide shutter cannot be made with an arch top.
Arch Top Custom Drop

A custom arch requires a springline measurement.

Springline – the dimension from the top of the shutter down to the start of the arch.

A pair of arch top shutters includes one shutter with the arch on the left side and one with the arch on the right.

*Double wide shutter cannot be made with an arch top.

Shutter Screws

Shutter screws are best used to install vinyl shutters to wood siding. The screw heads are painted to match the shutter color.

Shutters are not pre-drilled.
Shutter Spikes

Vinyl shutter spikes are designed to secure shutters to most surfaces. Screws are usually better for installing to wood. Scales, or ridges, of the shutter spike hold the apparatus in position. They are color coordinated to match the shutters.

Shutters are not pre-drilled.

How to Install Vinyl Shutters

Vinyl Louvered Shutter Configurations

#1

100% louvers top to bottom

At least one divider rail is required when the shutter height is equal to or greater than 55″. This option becomes unavailable when the height selected exceeds 54.75″.

The illustration depicts only the stiles and rails.
Louvers fill the open area.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#2

One centered divider rail

50% louvers above
50% louvers below

The illustration depicts only the stiles and rails.
Louvers fill the open area.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#3

Two divider rails

33% louvers at top
33% louvers at center
33% louvers at bottom

The illustration depicts only the stiles and rails.
Louvers fill the open area.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#4

Two divider rails

20% louvers at top
60% louvers at center
20% louvers at bottom

The illustration depicts only the stiles and rails.
Louvers fill the open area.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#5

One divider rail

60% louvers above
40% louvers below

The illustration depicts only the stiles and rails.
Louvers fill the open area.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#6

Three divider rails

25% louvers at top
25% louvers at center
25% louvers at center
25% louvers at bottom

The illustration depicts only the stiles and rails.
Louvers fill the open area.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#7

One divider rail

40% louvers above
60% louvers below

The illustration depicts only the stiles and rails.
Louvers fill the open area.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#8

Two divider rails

20% louvers at top
40% louvers at center
40% louvers at bottom

The illustration depicts only the stiles and rails.
Louvers fill the open area.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#9

One divider rail

20% louvers above
80% louvers below

The illustration depicts only the stiles and rails.
Louvers fill the open area.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#10

Two divider rails

40% louvers at top
20% louvers at center
40% louvers at bottom

The illustration depicts only the stiles and rails.
Louvers fill the open area.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.

Shutter Screws

Shutter screws are included to install board and batten vinyl shutters. The screw heads are painted to match the shutter color.

Shutter spikes are not long enough to extend through both the board and batten.

Shutters are not pre-drilled.

A divider rail is a horizontal bar (much like the top rail) that creates solid panel areas above and below the division.

No Divider Rail

Solid panel with no divider rail
One Divider Rail

Solid panel with one divider rail

Division Point 1: Measure from the bottom of the shutter to the desired center of the divider rail
Two Divider Rails

Solid panel with two divider rails

Division Point 1: Measure from the bottom of the shutter to the desired center of the first divider rail

Division Point 2: Measure from the bottom of the shutter to the desired center of the second divider rail

Raised Panel

Raised panels have beveled edges with a flat plateau in the center. The solid flat panel section is composite.
Flat Panel

Flat panel shutters are constructed with a central even surface with no detail. The solid flat panel section is composite.
Grooved Shaker Panel

Shaker panel shutters are fabricated with vertical grooves cut into the central surface. The solid grooved panel section is composite. The number of grooves is based on the shutter width.

Vertical grooves:
2 grooves for shutter widths 14” to 17 ¾”
3 grooves for shutter widths 18” to 23 ¾”
4 grooves for shutter widths 24” to 31 ¾”
5 grooves for shutter widths 32” to 39 ¾”
6 grooves for shutter widths 40” to 45”

A divider rail is a horizontal bar (much like the top rail) that creates one louver area above or below the division with a solid panel in the other section.

Divider Rail
A horizontal divider rail is necessary to separate the top section of a combination shutter from the bottom. The solid panel section is composite. Divider rail size is displayed under “Dimensions” on the main order page
- Select “Centered” or
- Measure from the bottom of the shutter to the desired center of the divider rail for a “Custom” location and record that dimension as the “Division Point”
* The actual location of the divider rail may be slightly higher or lower than requested. The number of louvers will dictate the final placement.

Straight Top Shutters

Straight top shutters are manufactured with a square horizontal top.
Arch Top Shutters

Arch top shutters are made with a curved top.

The specified shutter height is the dimension of the long vertical edge of the shutter.

The required springline is the measurement from the top of the shutter down to the start of the arch.

More about arch top shutters

Measure Composite Shutters

Composite exterior shutters install in a stationary position to the side of the window with the included Lexan polycarbonate fixed mounting brackets.

The v-shaped 1-1/8″ x 1-1/8″ brackets are specifically suited for use with outdoor composite shutters. The vertical side of the bracket attaches to the building and the horizontal side to the top or bottom of the shutter. The brackets extend the full width of the shutter and are not easily visible after installation.

Full Measuring Instructions

Measure Wood Board & Batten Shutters

Wood exterior shutters install to the side of the window using one of two methods.

Stationary shutters permanently attach to the side of the window in a fixed location.

Functional shutters mount with operable exterior hardware to pivot from a position flanking the window to cover the window opening.

How the window is measured depends on which of these two options is selected.

Vertical Boards

The number of boards is based on the shutter width.

3 boards for widths 12” to 17 ¾”
4 boards for widths 18” to 23 ¾”
5 boards for widths 24” to 31 ¾”
6 boards for widths 32” to 39 ¾”
7 boards for widths 40” to 48”

Measure Composite Board & Batten Shutters

Composite exterior shutters install in a stationary position to the side of the window with the included Lexan polycarbonate fixed mounting brackets.

The v-shaped 1-1/8″ x 1-1/8″ brackets are specifically suited for use with outdoor composite shutters. One side of the bracket attaches to the building. The vertical side of the bracket attaches to the building. The brackets extend the full width of the shutter and are not easily visible after installed.

The shutter measurements are based on the window

Vertical Boards

The illusion of boards is created with vertical grooves cut into the solid composite sheet. The number of boards is based on the shutter width.

3 boards for widths 12” to 17 ¾”
4 boards for widths 18” to 23 ¾”
5 boards for widths 24” to 31 ¾”
6 boards for widths 32” to 39 ¾”
7 boards for widths 40” to 48”

Full Measuring Instructions

Two Horizontal Battens

Top batten placed 7” below top of shutter

Bottom batten placed 7” above bottom of shutter

Battens 3.5″ in height
Width 0.75” less than shutter
Three Horizontal Battens

Top batten placed 7” below top of shutter

Batten placed at center

Bottom batten placed 7” above bottom of shutter

Battens 3.5″ in height
Width 0.75” less than shutter
Four Horizontal Battens

Top batten placed 7” below top of shutter

Two battens equally spaced between top and bottom

Bottom batten placed 7” above bottom of shutter

Battens 3.5″ in height
Width 0.75” less than shutter
Z-pattern

Top batten placed 7” below top of shutter

Batten placed at diagonal from bottom right of top batten to top left of bottom batten

Bottom batten placed 7” above bottom of shutter

Battens 3.5″ in height
Width 0.75” less than shutter
Reverse Z-pattern

Top batten placed 7” below top of shutter

Batten placed at diagonal from bottom left of top batten to top right of bottom batten

Bottom batten placed 7” above bottom of shutter

Battens 3.5″ in height
Width 0.75” less than shutter

Two Horizontal Battens

Top batten placed 7” below top of shutter

Bottom batten placed 7” above bottom of shutter

Battens 3.5″ in height
Width 0.75” less than shutter

Configuration optional when shutter height less than 55″.

A third batten is required when the shutter height is equal to or greater than 55″. (The two batten option will become unavailable on the order page)
Three Horizontal Battens

Top batten placed 7” below top of shutter

Batten placed at center

Bottom batten placed 7” above bottom of shutter

Battens 3.5″ in height
Width 0.75” less than shutter
Four Horizontal Battens

Top batten placed 7” below top of shutter

Two battens equally spaced between top and bottom

Bottom batten placed 7” above bottom of shutter

Battens 3.5″ in height
Width 0.75” less than shutter
Z-pattern

Top batten placed 7” below top of shutter

Batten placed at diagonal from bottom right of top batten to top left of bottom batten

Bottom batten placed 7” above bottom of shutter

Battens 3.5″ in height
Width 0.75” less than shutter
Reverse Z-pattern

Top batten placed 7” below top of shutter

Batten placed at diagonal from bottom left of top batten to top right of bottom batten

Bottom batten placed 7” above bottom of shutter

Battens 3.5″ in height
Width 0.75” less than shutter

1.75" Louvers (Standard)
- 1.75″ wide
- 0.25″ thick
- Length 4.25″ less than shutter width
- Spaced on 1.75″ centers
- Space between louvers
- Fixed 40° angle – do not rotate
- Number of louvers determined by shutter height
  Return to order page to calculate in “Specifications” section
- Slotted in 1.5″ side stiles
1.5" Louvers
- 1.5″ wide
- 0.25″ thick
- Length 4.25″ less than shutter width
- Spaced on 1.5″ centers
- Space between louvers
- Fixed 40° angle – do not rotate
- Number of louvers determined by shutter height
  Return to order page to calculate in “Specifications” section
- Slotted in 1.5″ side stiles
- Adds $25 per shutter

ShutterLand’s manufacturing process has been streamlined to keep costs and manufacturing time at a minimum. Therefore, we do not deviate from these two louver sizes.

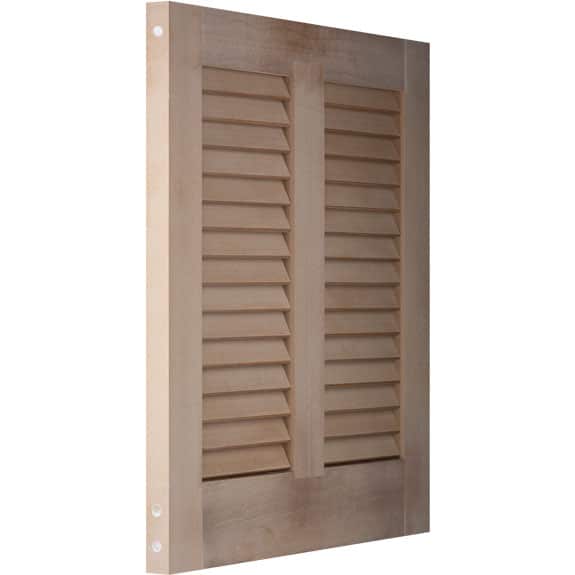

Bahama shutters are uniquely designed to span the width of entire windows. A vertical sub-stile is used to create multiple louver areas to prevent them from exceeding their natural width limitation. The number of sub-stiles based on the schedule below.

No Sub-Stile

Shutter Width: 16 – 27″

(Option automatically removed from the order page if shutter width is outside of these parameters)
One Sub-Stile

Shutter Width: 24 – 50″

(Option automatically removed from the order page if shutter width is outside of these parameters)
Two Sub-Stiles

Shutter Width: 36 – 60″

(Option automatically removed from the order page if shutter width is outside of these parameters)
Three Sub-Stiles

Shutter Width: 48 – 60″

(Option automatically removed from the order page if shutter width is outside of these parameters)
Four Sub-Stiles

Shutter Width: 60″

(Option automatically removed from the order page if shutter width is outside of these parameters)

Bahama shutters are uniquely designed to span the width of entire windows. A vertical sub-stile is used to create multiple louver areas to prevent them from exceeding their natural width limitation. The number of sub-stiles based on the schedule below.

No Sub-Stile

Shutter Width: 15 – 23.5″

(Option automatically removed from the order page if shutter width is outside of these parameters)
One Sub-Stile

Shutter Width: 23.75 – 45″

(Option automatically removed from the order page if shutter width is outside of these parameters)
Two Sub-Stiles

Shutter Width: 36 – 66.25″

If the shutter width exceeds 65″, all stile sizes will increase incrementally up to 4”. Select a greater number of sub-stiles to keep stiles at standard 2.125″.

(Option automatically removed from the order page if shutter width is outside of these parameters)
Three Sub-Stiles

Shutter Width: 48 – 85″

(Option automatically removed from the order page if shutter width is outside of these parameters)
Four Sub-Stiles

Shutter Width: 60 – 85″

(Option automatically removed from the order page if shutter width is outside of these parameters)

Measure Bahama Shutters

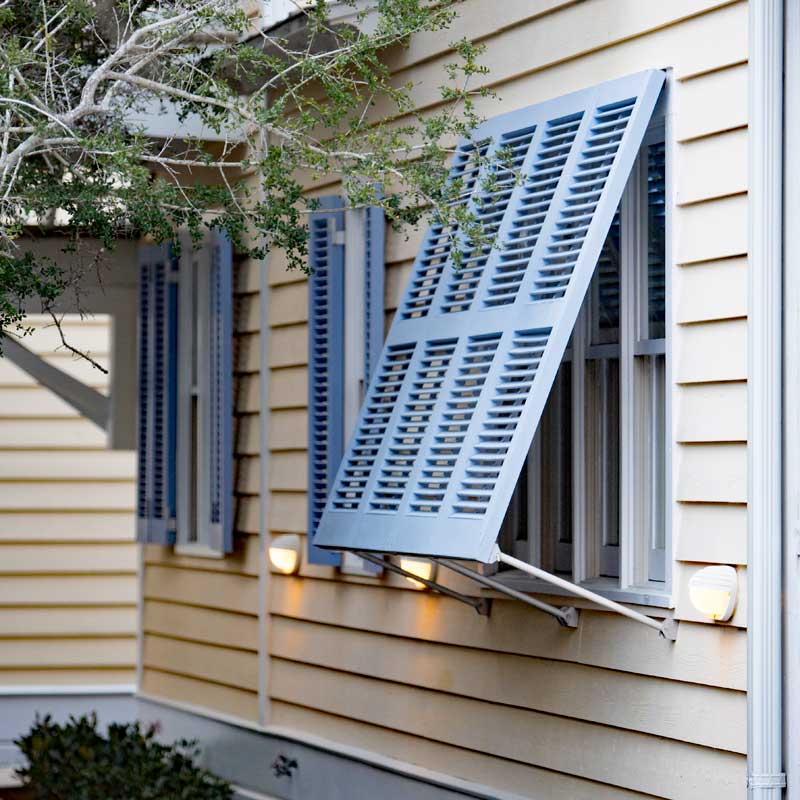

Bahama shutters install to the top of a window with functional hinges and extend away from the building at the bottom with shutter stays. The shutter can nest inside of a window opening with sufficient depth or sit just proud of the trim. Most Bahama shutters cover the full height of the window, while others are shorter and serve as a canopy over the top portion.

Full Measuring Instructions

No Gap Between Boards

Boards arranged tight together
Gap Between Boards

Arranged with 1/4 inch gap between boards

Individual board widths are adjusted to accommodate the gap and maintain the specified shutter width

Single Wide Shutter Width

Single Wide shutters have one vertical bank of louvers. They are available in 7 set widths.

Suggested shutter widths based on window size:

Window Width Single Wide Shutter Width

16″ or smaller 7″

17″ – 22″ 9″ or 10″

23″ – 31″ 12″ or 14.5″

32″ – 40″ 14.5″, 16.25″ or 17.75″

Double wide louvered vinyl shutter width.

Double Wide Shutter Widths

Double Wide vinyl shutters are made with a center vertical style for support that creates left and right louver areas. They are available in 8 widths.

Suggested shutter widths based on window size:

Window Width	Double Wide Shutter Width
23″ – 31″	13″
32″ – 40″	14.875″ or 19″
41″ – 45″	19″ or 20.875″
46″ – 53″	23.875″ or 25.75″
54″ +	27.5″ or 29″

Shutter Height

20 – 97″ in ¼″ increments

Composite, PVC and wood shutters are available in a wider range of sizes.

Vinyl Shutters

Vinyl shutters in the 19 standard colors are constructed from Polypropylene. The color is molded through the material and shutters arrive ready to install. Polypropylene cannot be painted. The paintable finish shutters are fabricated from Polystyrene and are translucent opal in color.

All vinyl shutters have a wood grain textured surface. Vinyl shutters are constructed in the form of a shell, with four sides, a front and a hollow back. The panels can feel flimsy right out of the box and may not have the rigidity one expects from wood or composite shutters. They gain great strength and stability when they are attached to the building.

Vinyl Shutters

Vinyl shutters in the 19 standard colors are constructed from Polypropylene. The color is molded through the material and arrive ready to install. Polypropylene cannot be painted. The paintable finish shutters are fabricated from Polystyrene and are translucent opal in color.

All vinyl shutters have a wood grain textured surface. Vinyl shutters are are constructed in the form of a shell, with four sides, a front and a hollow back. The panels can feel flimsy right out of the box and may not have the rigidity one expects from wood or composite shutters. They gain great strength and stability when they are attached to the building.

Vinyl shutters are available in 19 standard colors plus one paintable version. Colors are molded through the vinyl material for a lifetime finish. If color is critical, do not make a selection from a digital display. Request free color samples for physical onsite examination. Prefinished colors cannot be painted.

White #001
Black #002
Bedford Blue #004
Brick Red #005
Dark Grey #007
Colonial Blue #008
Pine Green #009
Sandalwood #011
Bronze #018
Sage #020
Ebony Green #021
Sienna Brown #025
Potters Clay #200
Chocolate Chip #206
Lunar Blue #208
Burgundy #260
Heritage Green #331
Dove Grey #352
Cranberry #613

Single Wide Shutter Width

Single Wide shutters are available in 7 set widths.

Suggested shutter widths based on window size:

Window Width Single Wide Shutter Width

16″ or smaller 7″

17″ – 22″ 9″ or 10″

23″ – 31″ 12″ or 14.5″

32″ – 40″ 14.5″, 16.25″ or 17.75″

Width of double wide outside raised panel vinyl shutters.

Double Wide Shutter Widths

Double Wide vinyl shutters are made with a center vertical style for support that creates left and right raised panel areas. They are available in 8 widths.

Suggested shutter widths based on window size:

Window Width	Double Wide Shutter Width
23″ – 31″	13″
32″ – 40″	14.875″ or 19″
41″ – 45″	19″ or 20.875″
46″ – 53″	23.875″ or 25.75″
54″ +	27.5″ or 29″

Shutter Height

20 – 97″ in ¼″ increments

Composite, PVC and wood shutters are available in a wider range of sizes.

Single Wide Shutter Width

Single Wide shutters are available in 7 set widths.

Suggested shutter widths based on window size:

Window Width Single Wide Shutter Width

16″ or smaller 7″

17″ – 22″ 9″ or 10″

23″ – 31″ 12″ or 14.5″

32″ – 40″ 14.5″, 16.25″ or 17.75″

Width of combo double wide exterior vinyl shutter.

Double Wide Shutter Widths

Double Wide vinyl shutters are made with a center vertical style for support that creates left and right areas. They are available in 8 widths.

Suggested shutter widths based on window size:

Window Width	Double Wide Shutter Width
23″ – 31″	13″
32″ – 40″	14.875″ or 19″
41″ – 45″	19″ or 20.875″
46″ – 53″	23.875″ or 25.75″
54″ +	27.5″ or 29″

Shutter Height

20 – 97″ in ¼″ increments

Composite and wood shutters are available in a wider range of sizes.

Rectangular Straight Top

Straight top shutters have a standard horizontal top rail.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
Eyebrow Top

Eyebrow top shutters are made with a slight curve in the top from the high side of the shutter down to the opposite side. Select from either a 1″, 2″ or 3″ drop. The drop (also called the springline) is the measurement from the top of the shutter down to the start of the curve. The shape of the raised panel area will remain rectangular.

A pair of eyebrow top shutters includes one shutter with the drop on the left side and one with the drop on the right.

*Only single wide shutters can be made with an eyebrow top. Double wide shutter have a vertical sub-stile and can only be made with a straight top.

Vinyl Raised Panel Shutter Configurations

#1

100% raised panel top to bottom

At least one divider rail is required when the shutter height is equal to or greater than 55″. This option becomes unavailable when the height selected exceeds 54.75″.

The illustration depicts only the stiles and rails.
A raised panel fills the open area.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#2

One centered divider rail

50% raised panel above
50% raised panel below

The illustration depicts only the stiles and rails.
A raised panel fills the open area.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#3

Two divider rails

33% raised panel at top
33% raised panel at center
33% raised panel at bottom

The illustration depicts only the stiles and rails.
A raised panel fills the open area.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#4

Two divider rails

20% raised panel at top
60% raised panel at center
20% raised panel at bottom

The illustration depicts only the stiles and rails.
A raised panel fills the open area.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#5

One divider rail

60% raised panel above
40% raised panel below

The illustration depicts only the stiles and rails.
A raised panel fills the open area.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#6

Three divider rails

25% raised panel at top
25% raised panel at center
25% raised panel at center
25% raised panel at bottom

The illustration depicts only the stiles and rails.
A raised panel fills the open area.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#7

One divider rail

40% raised panel above
60% raised panel below

The illustration depicts only the stiles and rails.
A raised panel fills the open area.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#8

Two divider rails

20% raised panel at top
40% raised panel at center
40% raised panel at bottom

The illustration depicts only the stiles and rails.
A raised panel fills the open area.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#9

One divider rail

20% raised panel above
80% raised panel below

The illustration depicts only the stiles and rails.
A raised panel fills the open area.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#10

Two divider rails

40% raised panel at top
20% raised panel at center
40% raised panel at bottom

The illustration depicts only the stiles and rails.
A raised panel fills the open area.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.

Rectangular Straight Top

Straight top shutters have a standard horizontal top rail.

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
Eyebrow Top

Eyebrow top shutters are made with a slight curve in the top from the high side of the shutter down to the opposite side. Select from either a 1″, 2″ or 3″ drop. The drop is the measurement from the top of the shutter down to the start of the curve. The shape of the top raised panel or louver area will remain rectangular.

*Only single wide shutters can be made with an eyebrow top. Double wide shutter have a vertical sub-stile and can only be made with a straight top.

Vinyl Shutters

Vinyl shutters in the 19 standard colors are constructed from Polypropylene. The color is molded through the material and arrive ready to install. Polypropylene cannot be painted. The paintable finish shutters are fabricated from Polystyrene and are translucent opal in color.

All vinyl shutters have a wood grain textured surface. Vinyl shutters are are constructed in the form of a shell, with four sides, a front and a hollow back. The panels can feel flimsy right out of the box and may not have the rigidity one expects from wood or composite shutters. They gain great strength and stability when they are attached to the building.

Vinyl Combo Shutter Configurations

#101

One centered divider rail

50% raised panel above
50% louvered below

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#105

Two divider rails

33% louvers at top
33% raised panel at center
33% louvers at bottom

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#107

Three divider rails

25% louvers at top
25% raised panel at center
25% louvers at center
25% raised panel at bottom

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#109

One divider rail

50% louvered above
50% raised panel below

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#112

Two divider rails

33% raised panel at top
33% louvered center
33% raised panel at bottom

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.
#115

Two divider rails

20% louvers at top
60% raised panel at center
20% louvered at bottom

*Image represents single wide shutters; double wide shutter have a vertical sub-stile.

Closed Weave Shutter Size

Board & Batten closed weave shutters are available in seven fixed widths. The individual board widths are 3.375″.

2 boards: 6.875″
3 boards: 10.25″
4 boards: 13.875″
5 boards: 17.25″
6 boards: 20.75″
7 boards: 23.875″
8 boards: 27.25″

Height: 20 – 97″ in 0.25″ increments
Open Weave Shutter Size

Board & Batten open weave shutters are available in seven fixed widths. The individual board widths are 3.375″ with a 0.75″ – 0.875″ gap between boards.

2 boards: 7.625″
3 boards: 12″
4 boards: 16″
5 boards: 20″
6 boards: 24.375″
7 boards: 28.625″
8 boards: 33″

Height: 20 – 97″ in 0.25″ increments

Composite and wood shutters are available in a wider range of sizes.

Vinyl Board & Batten Shutter Configurations

#1

2 battens (each 3.375″ in height)

Top batten below the top of the shutter*
Bottom batten above the bottom of the shutter*
#2

3 battens (each 3.375″ in height)

Top batten below the top of the shutter*
50% space
Center batten
50% space
Bottom batten above the bottom of the shutter*
#3

4 battens (each 3.375″ in height)

Top batten below the top of the shutter*
33% space
Center batten
33% space
Center batten
33% space
Bottom batten above the bottom of the shutter*
#4

4 battens (each 3.375″ in height)

Top batten below the top of the shutter*
20% space
Center batten
60% space
Center batten
20%
Bottom batten above the bottom of the shutter*
#5

3 battens (each 3.375″ in height)

Top batten below the top of the shutter*
60% space
Center batten
40% space
Bottom batten above the bottom of the shutter*
#6

5 battens (each 3.375″ in height)

Top batten below the top of the shutter*
25% space
Center batten
25% space
Center batten
25% space
Center batten
25% space
Bottom batten above the bottom of the shutter*
#7

3 battens (each 3.375″ in height)

Top batten below the top of the shutter*
40% space
Center batten
60% space
Bottom batten above the bottom of the shutter*
#8

4 battens (each 3.375″ in height)

Top batten below the top of the shutter*
20% space
Center batten
40% space
Center batten
40% space
Bottom batten above the bottom of the shutter*
#9

3 battens (each 3.375″ in height)

Top batten below the top of the shutter*
20% space
Center batten
80% space
Bottom batten above the bottom of the shutter*
#10

4 battens (each 3.375″ in height)

Top batten below the top of the shutter*
40% space
Center batten
20% space
Center batten
40% space
Bottom batten above the bottom of the shutter*
#11

2 horizontal battens*
& 1 diagonal batten forming a z or reverse-z
(each 3.375″ in height)

Pair includes one z-pattern shutter and one reverse z-pattern shutter
#12

3 battens (each 3.375″ in height)

Top batten at top edge of shutter
50% space
Center batten
50% space
Bottom batten at bottom edge of shutter
#13

2 horizontal battens
& 2 diagonal batten forming an x
(each 3.375″ in height)

Top batten positioned at top edge and bottom batten at bottom edge
#14

2 battens (each 3.375″ in height)
Battens are positioned in relation to the shortest board*

Boards are of various heights.

The shutter height is the length of the longest board. The next board in succession is 3” shorter than the previous. The bottom of all boards are even. The pattern repeats for all boards.

Pair includes one left shutter and one right shutter
#16

4 battens (each 3.375″ in height)

Top batten at top edge of shutter
33% space
Center batten
33% space
Center batten
33% space
Bottom batten at bottom edge of shutter
#17

2 battens (each 3.375″ in height)

Top batten at top edge of shutter
Bottom batten at Bottom edge of shutter
#18

2 battens (each 3.375″ in height)
Battens are positioned in relation to the shortest board*

Boards are two heights.

The shutter height is the length of the longest board. Shorter boards are 3” shorter at the top and 3″ shorter at the bottom than the longer boards, which are vertically centered. The pattern repeats for all boards.
#19

6 battens (each 3.375″ in height)

Top batten at top edge of shutter
20% space
Center batten
20% space
Center batten
20% space
Center batten
20% space
Center batten
20% space
Bottom batten at bottom edge of shutter
#21

2 battens (each 3.375″ in height)
Battens are positioned in relation to the shortest board*

Boards are of various heights.

The shutter height is the length of the longest board. The next board in succession is 3” shorter than the previous. The bottom of all boards are even. The pattern repeats for all boards.
#22

2 battens (each 3.375″ in height)
Battens are positioned in relation to the shortest board*

The shutter height is the length of the longest board located at center. The two boards on either side are 6” shorter and centered.

This style is only for 3 boards across.

*Batten location from the top or bottom of the shortest board to the batten depends on the shutter height. Applies to styles #1 – #10, #11, #14, #18, #21 and #22.

Shutter Height	Distance from Top or Bottom to Batten
0″ – 24″	2″
25″ – 36″	3″
37″ – 48″	4″
49″ +	6.5″

Vinyl Shutters

Vinyl shutters in the 19 standard colors are constructed from Polypropylene. The color is molded through the material and arrive ready to install. Polypropylene cannot be painted. The paintable finish shutters are fabricated from Polystyrene and are a translucent opal in color.

All vinyl shutters have a wood grain textured surface. Both boards and battens are are constructed in the form of a shell, with four sides, a front and a hollow back (shown at left). Both the boards and battens have a cap at either end of the component. The panels can feel flimsy right out of the box and may not have the rigidity one expects from wood or composite shutters. They gain great strength and stability when they are attached to the building.

1.75" Louvers (Standard)
- 1.75″ wide (see illustration)
- 0.25″ thick
- Length 4.25″ less than shutter width
- Spaced on 1.75″ centers
- 0.1875″ between louvers
- Fixed 17° angle – do not rotate
- Number of louvers determined by shutter height
  Return to order page to calculate in “Specifications” section
1.5" Louvers
- 1.5″ wide (see illustration)
- 0.25″ thick
- Length 4.25″ less than shutter width
- Spaced on 1.5″ centers
- 0.1875″ between louvers
- Fixed 17° angle – do not rotate
- Number of louvers determined by shutter height
  Return to order page to calculate in “Specifications” section
- Adds $25 per shutter
Louvers Down

Louvers can be oriented in a down position.
This option is recommended.
Louvers Up

Louvers can be oriented in an up position.

Faux Tilt Bar

A tilt bar is a narrow vertical wood rod that interconnects a group of horizontal louvers. A tilt bar used in conjunction with movable louvers unifies the slats and allows them to rotate at one time. Louvers on ShutterLand premium wood louvers are fixed in position and do not rotate. A faux tilt bar can be attached to replicate the appearance of movable louvers, usually for historical purposes. Selection of a tilt bar adds $40 to the price of each shutter.

Most exterior shutter applications do not require a tilt bar.

Faux Tilt Bar

A tilt bar is a narrow vertical wood rod that interconnects a group of horizontal louvers. A tilt bar used in conjunction with movable louvers unifies the slats and allows them to rotate at one time. Louvers on ShutterLand composite louvers are fixed in position and do not rotate. A faux tilt bar can be attached to replicate the appearance of movable louvers, usually for historical purposes. Selection of a tilt bar adds $40 to the price of each shutter.

Most exterior shutter applications do not require a tilt bar.

1.75" Composite Louvers (Standard)
- 1.75″ visible surface area (see illustration)
- Length 5″ less than shutter width
- Louver sections made in one-piece (not separate, individual louvers)
- No space between louvers
- Fixed down at 10° angle
1" Composite Louvers
- 1″ visible surface area (see illustration)
- Length 5″ less than shutter width
- Louver sections made in one-piece (not separate, individual louvers)
- No space between louvers
- Fixed down at 20° angle
- Adds $15 per shutter
Louvers Down

Louvers can positioned in a down position.

This position is recommended because the louvers shed moisture.
Louvers Up

Louvers can positioned in a up position. This is not a standard option and can ordered only by special request.

Up oriented louvers are not recommend because there is no space between the louvers resulting in a potential for water to reside in the grooves which may shorten the lifespan of the shutters.

Faux Tilt Bar

A tilt bar is a narrow vertical wood rod that interconnects a group of horizontal louvers. A tilt bar used in conjunction with movable louvers unifies the slats and allows them to rotate at one time. Louvers on ShutterLand composite louvers are fixed in position and do not rotate. A faux tilt bar can be attached to replicate the appearance of movable louvers, usually for historical purposes. Selection of a tilt bar adds $40 to the price of each shutter.

Most exterior shutter applications do not require a tilt bar.

A divider rail is a horizontal bar (much like the top rail) that creates louver areas above and below the division. The divider rail height is 2.125″.

No Divider Rail
- Configuration allowable when the shutter is shorter than 70″
- The “No” divider rail button becomes unavailable on the order page when height is greater than or equal to 70″
One Divider Rail
- Measure from the bottom of the shutter to the desired center of the divider rail
- Optional when the shutter is shorter than 70″
- Required if height is greater than or equal to 70″
- Divider rail size is displayed under “Specifications” on the main order page
* The actual location of the divider rail may be slightly higher or lower than requested. The number of louvers will dictate the final placement.
Two Divider Rails
- Measure from the bottom of the shutter to the desired center of the first divider rail
- Then, measure from the bottom of the shutter to the desired center of the second divider rail
- Divider rail size is displayed under “Specifications” on the main order page
* The actual location of the divider rail may be slightly higher or lower than requested. The number of louvers will dictate the final placement.

A divider rail is a horizontal bar (much like the top rail) that creates raised panel areas above and below the division. The divider rail height is 2.5″.

No Divider Rail
- Configuration allowable when the shutter is shorter than 70″
- The “No” divider rail button becomes unavailable on the order page when height is greater than or equal to 70″
One Divider Rail
- Measure from the bottom of the shutter to the desired center of the divider rail
- Optional when the shutter is shorter than 70″
- Required if height is greater than or equal to 70″
- Divider rail size is displayed under “Specifications” on the main order page
Two Divider Rails
- Measure from the bottom of the shutter to the desired center of the first divider rail
- Then, measure from the bottom of the shutter to the desired center of the second divider rail
- Divider rail size is displayed under “Specifications” on the main order page

A divider rail is a horizontal bar (much like the top rail) that creates solid panel areas above and below the division. The divider rail height is 2.5″.

No Divider Rail
- Configuration allowable when the shutter is shorter than 70″
- The “No” divider rail button becomes unavailable on the order page when height is greater than or equal to 70″
One Divider Rail
- Measure from the bottom of the shutter to the desired center of the divider rail
- Optional when the shutter is shorter than 70″
- Required if height is greater than or equal to 70″
- Divider rail size is displayed under “Specifications” on the main order page
Two Divider Rails
- Measure from the bottom of the shutter to the desired center of the first divider rail
- Then, measure from the bottom of the shutter to the desired center of the second divider rail
- Divider rail size is displayed under “Specifications” on the main order page

Red Grandis

Red Grandis is a nearly perfect high quality hardwood to manufacture exceptional exterior shutters. It has straight tight grain and minimal knotting, resulting in a consistently smooth texture. The fibers are relatively uniform in color with variations from light pink to dark red, and accept paint or stain well. Red Grandis is dimensionally stable and extremely strong. Paneled area is composite (see below).
Cedar

Cedar is the most common and recognizable tree species for the construction of outdoor shutters. This aromatic timber is resistant to both insects and decay. Cedar has condensed grain with few knots, resulting in straight handsome shutters with tones of red, brown, and tan. Cedar paints and stain well. Paneled area is composite (see below).
Mahogany

Mahogany has a compact grain with a rich, warm, reddish-brown hue. Mahogany shutters are strong, sturdy, and moisture resistant. Mahogany is relatively easy to finish and is heavier than other woods offered. Paneled area is composite (see below).
Composite Solid Panel

The central solid panel is fabricated from Extira, a composite material manufactured from sustainable wood fibers and marine-grade resins. Extira is designed for outdoor applications where humidity and moisture varies. It is strong, resilient and holds its shape in all weather conditions.

Southern Yellow Pine

Southern Yellow Pine is the most affordable solid wood option. This wood has a beautiful golden color with a distinct wood grain pattern that is 99.9% knot free. It is kiln-dried to minimum moisture content and cut to 1″ thick shutters. The joints between stiles and rails are glued, doweled, and screwed for ultimate strength. Paneled area is composite (see below).

Southern Yellow Pine shutters are considered entry-level, or builder grade, with lower performance standards compared to 1.5″ thick premium wood shutters.
Composite Solid Panel

The central solid panel is fabricated from Extira, a composite material manufactured from sustainable wood fibers and marine-grade resins. Extira is designed for outdoor applications where humidity and moisture varies. It is strong, resilient and holds its shape in all weather conditions.

1.75" Louvers (Standard)
- 1.75″ wide
- 0.25″ thick
- Length 4.25″ less than shutter width
- Spaced on 1.75″ centers
- 0.1875″ between louvers
- Fixed 17° angle – do not rotate
- Number of louvers determined by shutter height
  Return to order page to calculate in “Specifications” section
1.5" Louvers
- 1.5″ wide
- 0.25″ thick
- Length 4.25″ less than shutter width
- Spaced on 1.5″ centers
- 0.1875″ between louvers
- Fixed 17° angle – do not rotate
- Number of louvers determined by shutter height
  Return to order page to calculate in “Specifications” section
- Adds $25 per shutter

A divider rail is a horizontal bar (much like the top rail) that creates louver areas above and below the division. The divider rail height is 3.5″.

No Divider Rail
- Configuration allowable when the shutter is shorter than 70″
- The “No” divider rail button becomes unavailable on the order page when height is greater than or equal to 70″
One Divider Rail
- Measure from the bottom of the shutter to the desired center of the divider rail*
- Optional when the shutter is shorter than 70″
- Required if height is greater than or equal to 70″
- Divider rail size is displayed under “Specifications” on the main order page
* The actual location of the divider rail may be slightly higher or lower than requested. The number of louvers will dictate the final placement.
Two Divider Rails
- Measure from the bottom of the shutter to the desired center of the first divider rail*
- Then, measure from the bottom of the shutter to the desired center of the second divider rail*
- Divider rail size is displayed under “Specifications” on the main order page
* The actual location of the divider rails may be slightly higher or lower than requested. The number of louvers will dictate the final placement.

Straight Top

Straight top shutters have a standard horizontal top.
Arch Top 1:1 Drop

The arch of a 1:1 drop is equal to the width. So the measurement from the top of the shutter down to the start of the arch is the same as the shutter width.

A pair of arch top shutters includes one shutter with the arch on the left side and one with the arch on the right.
Arch Top Custom Drop

A custom arch requires a springline measurement.

Springline – the dimension from the top of the shutter down to the start of the arch.

A pair of arch top shutters includes one shutter with the arch on the left side and one with the arch on the right.

Flat Panel

Flat panel shutters are constructed with a central even surface with no detail.
Grooved Shaker Panel

Shaker panel shutters are fabricated with vertical grooves cut into the central surface. The number of grooves is based on the shutter width.

Vertical grooves:
2 grooves for shutter widths 12” to 17 ¾”
3 grooves for shutter widths 18” to 23 ¾”
4 grooves for shutter widths 24” to 31 ¾”
5 grooves for shutter widths 32” to 39 ¾”
6 grooves for shutter widths 40” to 45”

Production Time of Vinyl Shutters

Most vinyl shutters are manufactured within a window of 1-3 weeks. This projection is calculated based on current orders moving through the shop. We evaluate and update the forecast daily and we work diligently to meet the production time quoted.

All shutters are made to order and additional time is occasionally necessary to successfully complete the process. We will communicate any unanticipated delays.

It is possible that shutters are finished quicker than projected.

Vinyl shutters are shipped from our manufacturing facility in Illinois when complete. You will receive an email notification with tracking information shortly after the order departs.

ShutterLand Reviews

ShutterLand has a great reputation for both service and quality of product. Our success is predicated on your experience. We currently have 500+ Google reviews with an average score of 4.8. We encourage you to view as many as possible.

We also have reviews on Houzz and Facebook. Visit our comments page to view comments from customers sent directly to ShutterLand.

Oversize Shipping for Wood Shutters

Most wood shutters ship FREE!

A one-time $300 oversize shipping fee is charged only if:

The width is equal to or in excess of 24″
The height is equal to or in excess of 86″

The shipping amount will be added in the shopping cart.

This is a one-time charge and the total shipping amount will not exceed $300.

Production Time of Wood Shutters

Most wood shutters are manufactured within a window of 4-6 weeks. This projection is calculated based on current orders moving through the shop. We evaluate and update the forecast daily and we work diligently to meet the production time quoted.

All shutters are made to order and additional time is occasionally necessary to successfully complete the process. We will communicate any unanticipated delays.

It is possible that shutters are finished quicker than projected.

Wood shutters are shipped from our manufacturing facility in Alabama when complete. You will receive an email notification with tracking information shortly after the order departs.

Production Time of Composite Shutters

Most composite shutters are manufactured within a window of 4-6 weeks. This projection is calculated based on current orders moving through the shop. We evaluate and update the forecast daily and we work diligently to meet the production time quoted.

All shutters are made to order and additional time is occasionally necessary to successfully complete the process. We will communicate any unanticipated delays.

It is possible that shutters are finished quicker than projected.

Composite shutters are shipped from our manufacturing facility in Alabama when complete. You will receive an email notification with tracking information shortly after the order departs.

Production Time of Pine Shutters

Most Pine shutters are manufactured within a window of 4-6 weeks. This projection is calculated based on current orders moving through the shop. We evaluate and update the forecast daily and we work diligently to meet the production time quoted.

All shutters are made to order and additional time is occasionally necessary to successfully complete the process. We will communicate any unanticipated delays.

It is possible that shutters are finished quicker than projected.

Wood shutters are shipped from our manufacturing facility in Alabama when complete. You will receive an email notification with tracking information shortly after the order departs.

Oversize Shipping for Vinyl Shutters

Most vinyl shutters ship FREE!

A one-time $300 oversize shipping fee is charged only if:

Width	Height	One Time Oversize Shipping Rate
14.5″	>= 92″	$200
16.25″	>= 88″	$200
17.75″	>= 86″	$200
13″	>= 96″	$200
14.875″	>= 92″	$200
19″	>= 84″	$200
20.875″	>= 80″	$200
23.875″	>= 74″	$200
25.75″	>= 70″	$200
27.5″	>= 66″	$200
29′	>= 64″	$200

The shipping amount will be added in the shopping cart.

This is a one-time charge and the total shipping amount will not exceed $300.

Oversize Shipping for Vinyl Board & Batten Shutters

Most vinyl shutters ship FREE!

A one-time $300 oversize shipping fee is charged only if:

Width	Height	One Time Oversize Shipping Rate
13.875″ – 4 Boards	>= 90″	$300
16″ – 4 Boards	>= 90″	$300
17.25″ – 5 Boards	>= 82″	$300
20″ – 5 Boards	>= 82″	$300
20.75″ – 6 Boards	>= 72″	$300
23.875″ – 7 Boards	>= 64″	$300
24.375″ – 6 Boards	>= 72″	$300
27.25″ – 8 Boards	>= 56″	$300
28.625″ – 7 Boards	>= 64″	$300
33″ – 8 Boards	>= 56″	$300

The shipping amount will be added in the shopping cart.

This is a one-time charge and the total shipping amount will not exceed $300.

Bahama Shutters Free Shipping

All wood Bahama shutters ship for FREE!

Oversize Shipping for Composite Shutters

Most composite shutters ship FREE!

A one-time $300 oversize shipping fee is charged only if:

The width is equal to or in excess of 24″
The height is equal to or in excess of 86″

The shipping amount will be added in the shopping cart.

This is a one-time charge and the total shipping amount will not exceed $300.

Production Time of Composite Shutters

Most composite shutters are manufactured within a window of 4-6 weeks. This projection is calculated based on current orders moving through the shop. We evaluate and update the forecast daily and we work diligently to meet the production time quoted.

All shutters are made to order and additional time is occasionally necessary to successfully complete the process. We will communicate any unanticipated delays.

It is possible that shutters are finished quicker than projected.

Composite shutters are shipped from our manufacturing facility in Alabama when complete. You will receive an email notification with tracking information shortly after the order departs.

Louvers
Raised Panel
Grooved (Shaker) Panel
Flat Panel

Oversize Shipping for PVC Shutters

Most PVC shutters ship FREE!

A one-time $300 oversize shipping fee is charged only if:

The width is equal to or in excess of 24″
The height is equal to or in excess of 86″

The shipping amount will be added in the shopping cart.

This is a one-time charge and the total shipping amount will not exceed $300.

Production Time of PVC Shutters

Most PVC shutters are manufactured within a window of 4-6 weeks. This projection is calculated based on current orders moving through the shop. We evaluate and update the forecast daily and we work diligently to meet the production time quoted.

All shutters are made to order and additional time is occasionally necessary to successfully complete the process. We will communicate any unanticipated delays.

It is possible that shutters are finished quicker than projected.

Wood shutters are shipped from our manufacturing facility in Alabama when complete. You will receive an email notification with tracking information shortly after the order departs.

Aluminum Shipping Rates

A one-time standard shipping rate is charged per region.

The shipping amount will be added in the shopping cart.

Production Time of Aluminum Shutters

Most aluminum shutters are manufactured within a window of 8-10 weeks. This projection is calculated based on current orders moving through the shop. We evaluate and update the forecast daily and we work diligently to meet the production time quoted.

All shutters are made to order and additional time is occasionally necessary to successfully complete the process. We will communicate any unanticipated delays.

It is possible that shutters are finished quicker than projected.

Aluminum shutters are shipped from our manufacturing facility in Florida when complete. You will receive an email notification with tracking information shortly after the order departs.

Measure PVC Board & Batten Shutters

PVC exterior shutters install to the side of the window using one of two methods.

Stationary shutters permanently attach to the side of the window in a fixed location.

Functional shutters mount with operable exterior hardware to pivot from a position flanking the window to cover the window opening.

How the window is measured depends on which of these two options is selected.

Vertical Boards

The number of boards is based on the shutter width.

Four available
Closed-weave
7.75″ – 2 boards
11.625″ – 3 boards
15.5″ – 4 boards
19.375″ – 5 boards

How to Measure PVC Shutters

Two Horizontal Battens

Top batten placed 5” below top of shutter

Bottom batten placed 5” above bottom of shutter

Battens 3.5″ in height
Width 0.875” less than shutter

Configuration optional when shutter height less than 55″.

A third batten is required when the shutter height is equal to or greater than 55″. (The two batten option will become unavailable on the order page)
Three Horizontal Battens

Top batten placed 5” below top of shutter

Batten placed at center

Bottom batten placed 5” above bottom of shutter

Battens 3.5″ in height
Width 0.875” less than shutter

A fourth batten is required when the shutter height is equal to or greater than 82″. (The three batten option will become unavailable on the order page)
Four Horizontal Battens

Top batten placed 5” below top of shutter

Two battens equally spaced between top and bottom

Bottom batten placed 5” above bottom of shutter

Battens 3.5″ in height
Width 0.875” less than shutter
Z-pattern

Top batten placed 5” below top of shutter

Batten placed at diagonal from bottom right of top batten to top left of bottom batten

Bottom batten placed 5” above bottom of shutter

Battens 3.5″ in height
Width 0.875” less than shutter
Reverse Z-pattern

Top batten placed 5” below top of shutter

Batten placed at diagonal from bottom left of top batten to top right of bottom batten

Bottom batten placed 5” above bottom of shutter

Battens 3.5″ in height
Width 0.875” less than shutter

Fixed Installation Brackets

V-shaped clear Lexan polycarbonate mounting brackets are used to install shutters in a fixed position. One edge of the bracket screws into the building with included stainless steel screws. The perpendicular edge overlaps the top or bottom edge of the shutter and secures in place with shorter screws.

The use of installation brackets avoids the need to drill or screw through the face of the shutter. They are clear, so they will not hinder the appearance of the shutter. Installation brackets are $6 per shutter.

Installation hinges will need to be obtained from an outside shutter hardware source. Select the “No Hardware” option.

The video on the installation page will help to visualize the exact process.

Fixed Installation Brackets

V-shaped clear Lexan polycarbonate mounting brackets are used to install shutters in a fixed position. One edge of the bracket screws into the building with included stainless steel screws. The perpendicular edge overlaps the top or bottom edge of the shutter and secures in place with shorter screws.

The use of installation brackets avoids the need to drill or screw through the face of the shutter. They are clear, so they will not hinder the appearance of the shutter. Installation brackets are $6 per shutter.

Installation hinges will need to be obtained from an outside shutter hardware source. Select the “No Hardware” option.

The video on the installation page will help to visualize the exact process.

Exterior PVC Bahama Shutters

Description

Dimensions

How to Measure

How to Install

Details

G.P.

Norm B.

Pamela S.

Bill O.

David A.

Michael A.

Nancy R.

James R.

Ravi S.

Cameron S.

Geoffrey M.

Chuck O.

Doug B.

Sherri L.

Tom A.

John Z.

Lani C.

Mark G.

Steve S.

Adam D.

Roy S.

Stephen D.

Pam D.

Joe & Kirsten S.

James B.

Bruce G.

Caroline N.

Cheryl B.

Beth K.

Gordon S.

James P.

Mark H.

Neil S.

Tom B.

Paul G.

David F.

Lori W.

John R.

Roger

Peter P.

ShutterLand Customer

David W.

Mark G.

Charlotte H.

Rebecca T.

Karen R.

Sparky K.

Allen P.

Outdoor Bahama Shutter Hardware

Construction of PVC Louver Shutters

Pros

Cons

Compare

PVC Bahama Shutter Colors

Options for PVC Bermuda Shutters

Visitors also considered

Premium Wood Louvered Exterior Shutters

Exterior Louvered Economy Pine Shutters

PVC Louver Exterior Shutters

Premium Wood Bahama Shutters

Straight Top Shutters

Arch Top Shutters

No Divider Rail

One Divider Rail

Two Divider Rails

No Divider Rail

One Divider Rail

Two Divider Rails

No Divider Rail

One Divider Rail

Two Divider Rails

Measure PVC Shutters

Measure Wood Shutters

1.75" Louvers (Standard)
